10-Strike Network Diagram

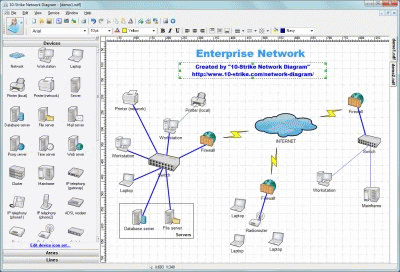

10-Strike Network Diagram is a powerful network diagrammer and mapper for the quick creation of visual local-area network maps and diagrams, and exporting them to Microsoft Visio, or saving as charts, vector, or raster images.

The program will scan your managed switches via SNMP and discover the LAN topology automatically.

It supports scanning via the ICMP, TCP, UPnP, SNMP, and LLDP protocols, builds a graphical network map, displaying devices of different types as special vector icons, and draws links between them.

The advantage of the application is a convenient, feature-rich graphic editor and an object library; a wide range of quality network device icons, "stretching" lines and areas of different forms. In addition, the software offers a wide choice of colors, fonts, and fillings for graphic primitives for editing the network diagrams. All these means can make your network maps and diagrams better-looking.
